EBS PicAS II · Drop-on-Demand (DOD)
EBS-1600

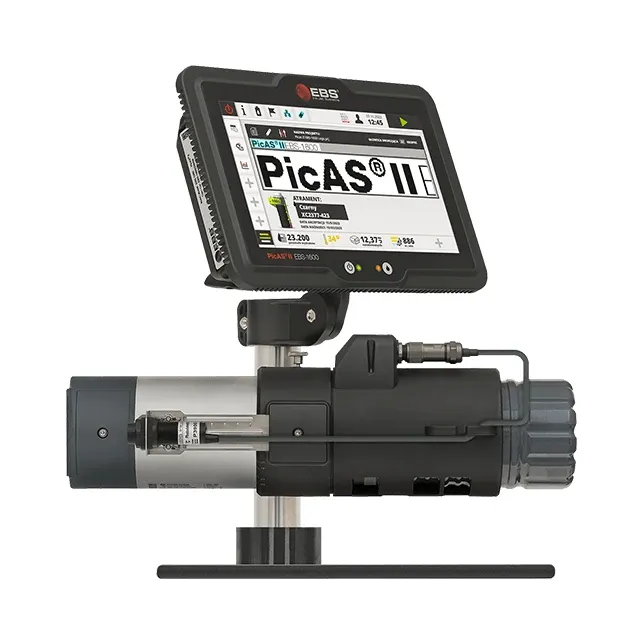

Large-character drop-on-demand printer with self-pressurised, tool-free cartridges.
A PicAS II large-character DOD printer built for demanding production environments. Self-pressurised ink cartridges need no external compressed air line, and the printhead swaps between five sizes to cover 6-58 mm characters.
The EBS-1600 is EBS's large-character drop-on-demand platform: a single printer body that takes one of five printhead types, from a 7-nozzle head for a 13 mm line up to a 32-nozzle head for 58 mm characters, so the same base unit covers pallet, carton and construction-material marking.
Ink arrives in self-pressurised cartridges — no plant compressed-air supply and no ink lines to route — and a cartridge change takes seconds. The control terminal is a 10.1" colour touchscreen, and the operating terminal and printhead carry IP54 and IP55 ratings respectively for washdown environments.
Videos

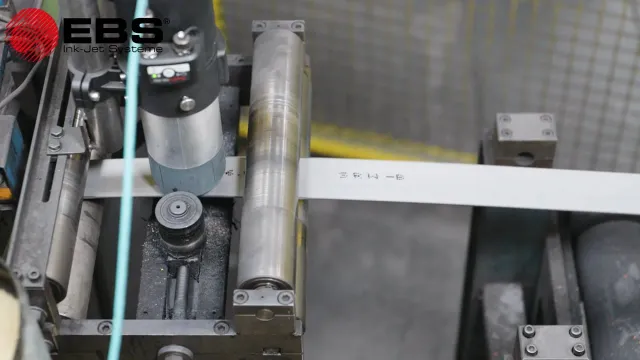

EBS-1600 — Wood & Metal Production
Anwendung
Ausführungen
- 7N/137 dots13 mm print height, 100 m/min
- 7N/247 dots24 mm print height, 200 m/min
- 16N/29Standard16 dots29 mm print height, 100 m/min
- 16N/5616 dots56 mm print height, 200 m/min
- 32N/5832 dots58 mm print height, 100 m/min
Kennzeichnet auf
- Metal
- concrete
- Wood and building materials
- Kabel & Draht
Eingesetzt in
