Carl Valentin Compa V
Versatile industrial printer, label rolls up to 205 mm diameter, print widths to 162.6 mm.
Takes label rolls up to 205 mm diameter and prints at up to 300 mm/s for fewer roll changes on a busy line; a 162 mm wide variant covers pallet and large-format labels, and stand-alone mode runs without a host PC.
The Compa V takes label rolls up to 205 mm in diameter and prints at up to 300 mm/s, meaning fewer roll changes on a busy line. A 162.6 mm wide variant covers pallet and large-format labels, and stand-alone mode lets it run without a host PC.
Print widths run from 104 mm to 162.6 mm across six configurations, most supporting both thermal transfer and thermal direct printing. Options include a rotation cutter, dispenser, internal or external rewinder, and a pneumatic applicator for print-and-apply integration.
Vidéos

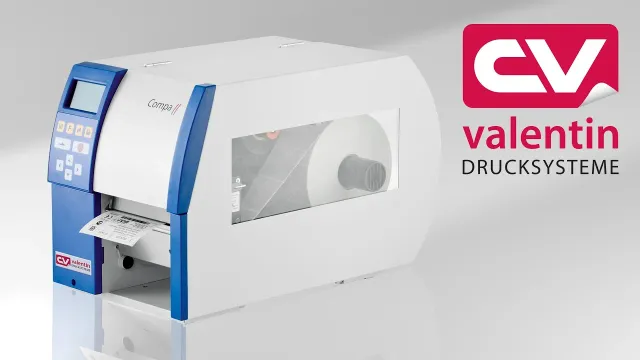

Compa II / V — Test Print and Status Print
Maintenance
Configurations
- Compa V 103/8Standard203 dpi, 300 mm/s, 104 mm print width, 120 mm passage width, thermal transfer and thermal direct.
- Compa V 104/8203 dpi, 300 mm/s, 104 mm print width, 120 mm passage width, thermal transfer only.
- Compa V 106/12300 dpi, 300 mm/s, 105.7 mm print width, 120 mm passage width, thermal transfer only.
- Compa V 106/24600 dpi, 150 mm/s, 105.6 mm print width, 120 mm passage width, thermal transfer only.
- Compa V 108/12300 dpi, 300 mm/s, 108.4 mm print width, 120 mm passage width, thermal transfer and thermal direct.
- Compa V 162/12300 dpi, 250 mm/s, 162.6 mm print width, 180 mm passage width, thermal transfer and thermal direct; 14 kg.
Options usine
- Rotation cutter
- Dispenser
- Internal or external rewinder
- Pneumatic applicator (print-and-apply integration)
Utilisé dans
Documents
- Compa V operating manual · v2026-07-31 (PDF, EN)
