Labelmate · Numărătoare de etichete

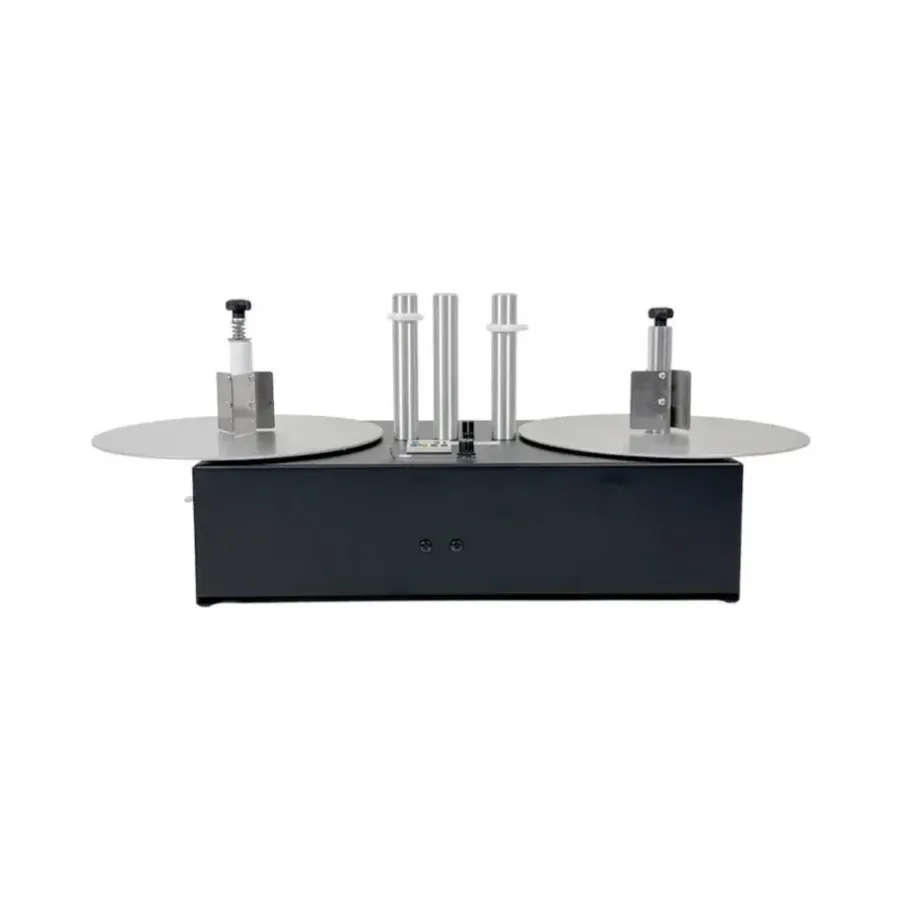

Labelmate RRC-330
Table-top reel-to-reel counting system for rolls up to 330 mm diameter.
A self-contained table-top reel-to-reel counting system with a preset counter: verifies the number of labels on a roll, splits large rolls into smaller ones, reverses winding direction, or changes core size, all on rolls up to 330 mm.
A self-contained table-top reel-to-reel counting system with a preset counter: verifies the number of labels on a roll, splits large rolls into smaller ones, reverses winding direction, or changes core size, all on rolls up to 330 mm.
Rolls up to 330 mm diameter · Quick-change shaft on the unwind side for fast core-diameter changes (38-100 mm) · Ultrasonic ("-U") version counts any label type, including transparent or dark labels · ACH (Adjustable Core Holder) take-up accepts 25-101 mm cores; CHUCK take-up is a fixed 76 mm Quick-Chuck
Videoclipuri

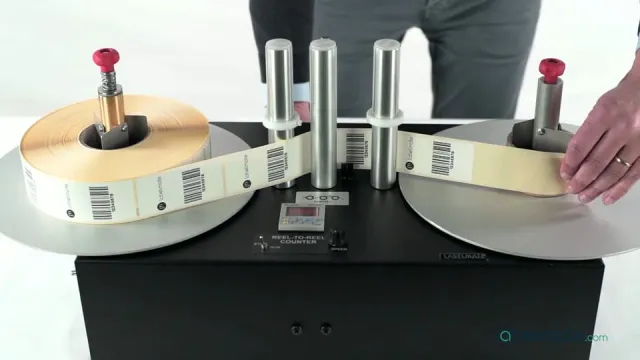

Labelmate RRC-330 label counter overview
Prezentare
Configurații
- RRC-330-STANDARDStandardSKU LMC001; weight 26 kg; dimensions 36 × 47 × 91 cm. Regular sensor, quick-change core holders on both shafts (38-100 mm).
- RRC-330-ACHSKU LMC002; weight 26 kg; dimensions 36 × 47 × 91 cm. Regular sensor, adjustable core holder (25-101 mm) on the take-up shaft.
- RRC-330-U-STANDARDStandardSKU LMC003; weight 26 kg; dimensions 36 × 47 × 91 cm. Ultrasonic sensor, counts transparent/dark labels; quick-change core holders.
- RRC-330-U-ACHSKU LMC004; weight 26 kg; dimensions 36 × 47 × 91 cm. Ultrasonic sensor; adjustable core holder (25-101 mm) on the take-up shaft.
- RRC-330-CHUCKSKU LMC010. Regular sensor; fixed 76 mm Quick-Chuck take-up, max label width 170 mm.
Documente
- Labelmate RRC-330 user manual · v2025-09 (PDF, EN)
