Carl Valentin SPE II
Rugged, modular print module for continuous industrial operation, up to 350 mm/s.
A rugged, modular print module for continuous industrial operation, used either as a print-and-apply engine on a pneumatic applicator or mounted on a label dispenser as a stand-alone system.
The SPE II is a rugged, modular print module for continuous industrial operation, used either as a print-and-apply engine on a pneumatic applicator or mounted on a label dispenser as a stand-alone system. A 7-inch touch display with print preview handles day-to-day operation, available as a panel or desktop enclosure.
The panel control unit can reach IP65 splash protection with an optional cover, and the stainless steel housing meets hygiene requirements for food, beverage, chemical, pharmaceutical and medical use. Print speed reaches 350 mm/s, with resolution up to 600 dpi and transfer ribbon saving on select configurations.
Video snimci

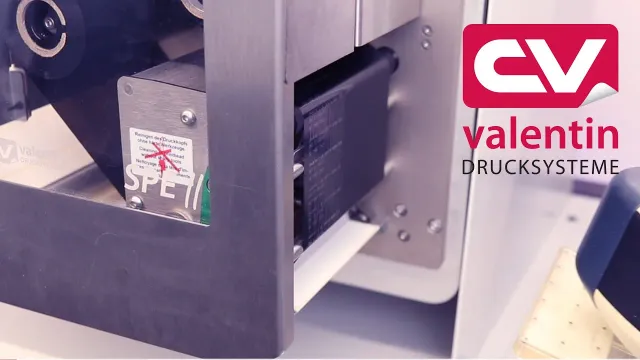

SPE II print module — Print & Apply with PI Robotics
Primena
Konfiguracije
- SPE II 106/12Standardno300 dpi, 350 mm/s, 105.7 mm print width, Flat Type printhead, 11 kg.
- SPE II 106/24600 dpi, 100 mm/s, 105.6 mm print width, Flat Type printhead, 11 kg.
- SPE II 107/12300 dpi, 350 mm/s, 106.6 mm print width, Corner Type printhead (ribbon saving per the brochure's spec table), 11 kg.
- SPE II 108/12300 dpi, 350 mm/s, 108.4 mm print width, Flat Type printhead, 11 kg.
- SPE II 160/12300 dpi, 300 mm/s, 160 mm print width, Corner Type printhead (ribbon saving per the brochure's spec table), 13 kg.
- SPE II 162/12300 dpi, 300 mm/s, 162.6 mm print width, Flat Type printhead, 13 kg.
Dokumenti
- SPE II operating manual · v2026-01-13 (PDF, EN)
